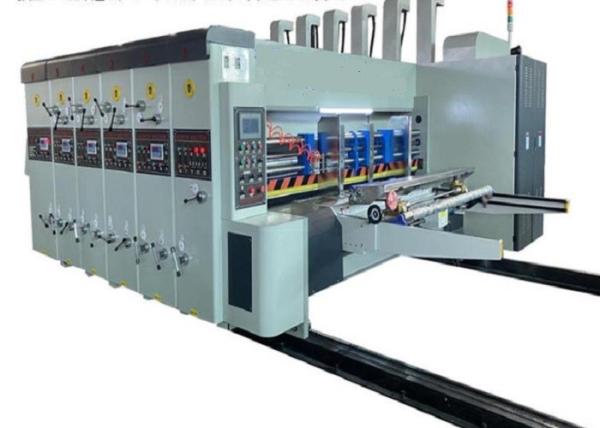

Automatic Corrugated Box Printing Machine

Product Categories

Dongguang Dahua Carton Machinery Co.,Ltd.

Contact Now

Name: Automatic Corrugated Box Printing Machine
Brand: Dahua
Price: 20000 USD

Brand Name : Dahua

Model Number : GYKM

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 20000 - 100000 per set

Payment Terms : T/T, L/C, D/P, MoneyGram, Western Union

Supply Ability : 10 sets per month

Delivery Time : 40-60 days

Packaging Details : PP film wrapped outside,loading in 20' and/or 40' container

Automatic grade : Automatic

Electric component : Simens Schneider or Customized

Voltage : 380V 440V

Power : 25KW

Weight : 20T

Warranty : 1 Year

Product name : Automatic Carton Box Making Machine

After Warranty Service : Video technical support, Online support, Spare parts,Field Maintenance and repair service

Feeding way : Lead edge feeding

Speed : 150pcs/min

Contact Now

Factory Selling Paperboard Corrugated Automatic Carton Box Making Machine

1.Printer unit ,printing color on corrugated paperboard , it can be 1 color , 2 color , 3 color , 4 color , 5 color . this machine is 2 color

2. slotter unit , for standard box cutting , box size is adjustable

3.Die cutter unit , for special box cutting , install different die cutting mould can make different design carton box

4.slotter and die cutter can combined in same unit , machine price is better

Model	920	1224	1426	1628
Max speed (pcs/min)	300	250	180	160
Feeding precision(mm)	±1
Min sheet size(mm)	300*600	420*600	450*600	450*600
Max sheet size(mm)	860*2100	1150*2500	1350*2700	1500*2900
Skip sheet size\|(mm)	1200*2100	1500*2500	1800*2700	2000*2900
Max printing area(mm)	900*2000	1200*2400	1400*2600	1600*2800
Printing precision(mm)	±0.5
Plate thickness(mm)	7.2
positive knife Min slotting distance negative knife	130130130*130	140140140*140	150150150*150
positive knife Min slotting distance negative knife	23065230*65	23070230*70	24075240*75
Max slot depth	230	300	360	400
Max slot depth	increase the blade, increase the slot depth
Slotting precision(mm)	±1
Die cutting precision(mm)	±1
